Comfortable Definition of Background

Go to Match! Features Overview...
Previous: Saving of selection criteria for restraints and additional entries...
Next: Zooming Facilities...

Another drawback of the previous version of Match! was the definition of the background: It was not possible to modify the automatically defined background. Although the automatically determined background was appropriate in many cases, sometimes it did not describe the background correctly.

The background is first determined automatically during the import of the diffraction data. Afterwards, it is possible to modify the shape of the background curve, simply by dragging around control points of the background curve using the mouse (you may have to activate the "Display background" option first). It is also easily possible to add more control points or delete existing ones just by clicking the right or left mouse button if the mouse cursor is at the corresponding position:

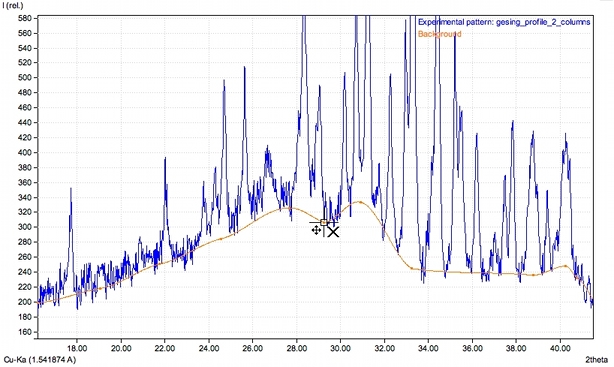

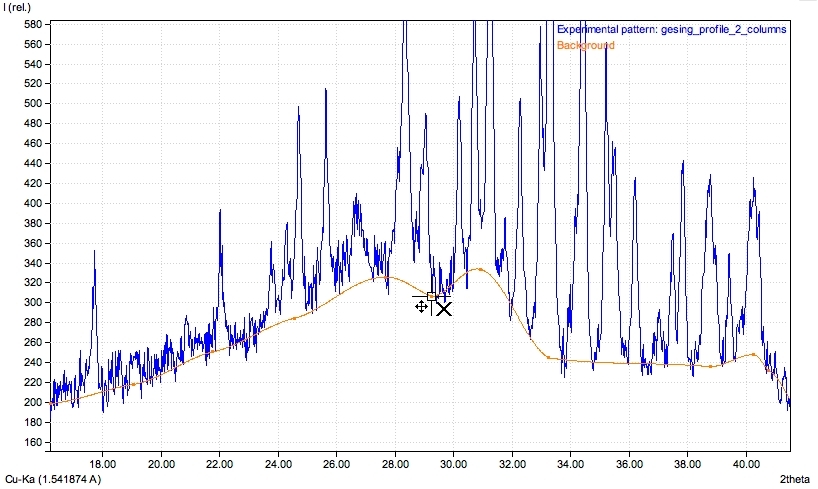

Screen shot showing the intuitive modification of the background control points. Click to enlarge.
